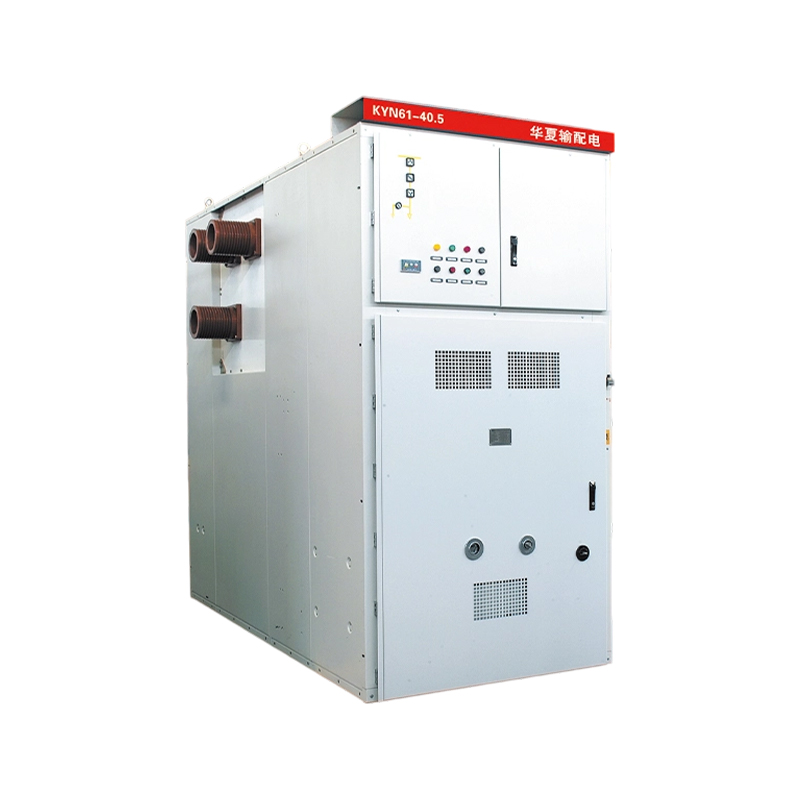

Withdrawable AC Metal-Enclosed Switchgear: The Backbone of Reliable Power Distribution

Power distribution systems in industrial and commercial settings need to be reliable, maintainable, and safe. Factories. Data centers. Hospitals. Substations. When something goes wrong, you can't shut down the whole system to fix one breaker. Withdrawable AC metal-enclosed switchgear solves that problem. It's built with circuit breakers and other components that slide out on rails, so you can remove, service, or replace them while the rest of the system stays live. It's the standard for medium-voltage power distribution where downtime isn't an option.

What Makes Withdrawable Switchgear Different from Fixed Switchgear

Circuit Breakers That Slide Out for Easy Maintenance

The breakers are mounted on wheels or rails inside the enclosure. Withdrawable AC metal-enclosed switchgear lets you pull a breaker out of its compartment without disconnecting cables or bus bars. You roll it out, service it, test it, and roll it back in. No heavy lifting, no unbolting, no downtime on the rest of the system. This is the main advantage over fixed switchgear, where you have to de-energize the entire section just to work on one breaker.

Three Positions: Connected, Test, and Disconnected

Withdrawable AC metal-enclosed switchgear gives you three distinct positions for each breaker. Connected—the breaker is fully engaged with the bus and ready to carry load. Test—the breaker is isolated from the bus but still powered for testing. Disconnected—the breaker is completely removed from the circuit. These positions let you work on the breaker safely without interrupting the rest of the system.

Mechanical Interlocks That Prevent Operating Errors

You can't operate the breaker in the wrong position. Withdrawable AC metal-enclosed switchgear uses mechanical interlocks that prevent closing the breaker when it's in test or disconnected position. You also can't move the breaker between positions while it's closed. The interlocks make sure you do things in the right order, even if you're in a hurry.

What Goes into a Withdrawable Switchgear Assembly

The Metal Enclosure Provides Protection and Compartmentalization

The metal housing is the first line of defense. Withdrawable AC metal-enclosed switchgear uses welded steel construction with separate compartments for each functional unit—breaker, bus, cable terminations, and control wiring. The enclosure provides mechanical protection, contains internal arcs, and prevents accidental contact with live parts. Compartments are separated by grounded metal barriers that keep faults from spreading.

The Circuit Breaker Is the Core Component

This is what actually interrupts the current. Withdrawable AC metal-enclosed switchgear uses vacuum or SF6 circuit breakers rated for medium voltage. The breaker itself is a complete assembly—operating mechanism, contacts, current sensors, and control wiring—all mounted on a chassis that rolls in and out as a single unit.

The Bus System Distributes Power to Each Breaker

Power comes in through the main bus and gets distributed to each breaker compartment. Withdrawable AC metal-enclosed switchgear uses copper or aluminum bus bars with insulated supports. When the breaker is in connected position, it's physically and electrically connected to the bus. In test or disconnected position, the connection is broken, and the breaker is isolated.

Typical specs for withdrawable metal-enclosed switchgear:

• Voltage: 3.3kV to 36kV
• Current: up to 4000A
• Breaker types: vacuum, SF6
• Bus bar: copper or aluminum
• Compartments: breaker, bus, cable, control
• Standards: IEC 62271-200, ANSI C37
• Enclosure protection: IP4X (internal), IP2X (external)

Where Withdrawable Switchgear Is Typically Installed

Data Centers Where Power Continuity Is Critical

Power continuity is everything in data centers. Withdrawable AC metal-enclosed switchgear allows maintenance on breakers without taking down critical loads. Power distribution stays live while work happens. Data centers run 24/7, and switchgear supports that reliability.

Industrial Facilities with Large Motor Loads

Factories with large motors need reliable switchgear. Withdrawable AC metal-enclosed switchgear lets you service breakers during scheduled downtime—or emergency situations—without shutting down the entire plant. Production continues while maintenance happens.

Hospitals and Medical Campuses

Healthcare facilities can't afford power interruptions. Withdrawable AC metal-enclosed switchgear provides the flexibility to maintain equipment while critical systems stay online. Operating rooms, ICUs, and labs stay powered during breaker service.

Utility Substations and Power Distribution Centers

Utility substations use withdrawable switchgear for the same reasons. Withdrawable AC metal-enclosed switchgear makes it possible to maintain and replace breakers without de-energizing entire sections of the grid. Reliability and uptime are built into the design.

What to Look for When Specifying Withdrawable Switchgear

Compartment Isolation and Arc Containment

Each compartment should be separate and grounded. Withdrawable AC metal-enclosed switchgear uses metal barriers between compartments to contain faults and protect personnel. If a breaker fails, the arc stays in its compartment rather than spreading to adjacent sections.

Mechanical Interlocks That Work Without Control Power

Interlocks must be reliable and mechanical, not just electronic. Withdrawable AC metal-enclosed switchgear with mechanical interlocks ensures that even with a control power failure, the safety mechanisms still work. You can't bypass them accidentally or intentionally without defeating the design.

Smooth Withdrawability That Doesn't Require Excessive Force

Moving the breaker in and out should be smooth, not a struggle. Withdrawable AC metal-enclosed switchgear uses rollers or rails that work reliably, even after years of use. The breaker should glide in and out without requiring excessive force or special tools.

Ratings That Match Your System Conditions

Voltage, current, and short-circuit ratings must match the application. Withdrawable AC metal-enclosed switchgear should be specified for the actual system conditions—not just standard generic ratings. Over-spec is expensive. Under-spec is unsafe.

Factory Testing and Documentation

Switchgear should be factory-tested before delivery. Withdrawable AC metal-enclosed switchgear should have dielectric tests, mechanical operation tests, and functional tests documented. Field commissioning should confirm everything works as designed before the system goes live.

Withdrawable AC metal-enclosed switchgear is not the most glamorous part of a power system. But it's one of the most important. It keeps power flowing, it keeps maintenance possible, and it keeps people safe. When you need to pull a breaker for service, you can. When you need to work on the next breaker, you can. No shutdowns, no scrambles, no surprises. It's the kind of equipment you don't think about until you need it—and then you're glad it's there.
