PV Grid-connected Switchgear: The Critical Link in Solar Power Delivery

Solar installations are full of power. Inverters. Transformers. Protection relays. Meters. Without reliable switching and protection, this power cannot reach the grid safely. PV grid-connected switchgear manages this connection. It consolidates circuit breakers, disconnect switches, and protective devices. It makes power delivery stable and maintenance straightforward.

What PV Grid-connected Switchgear Does

It bridges the solar array and the utility network

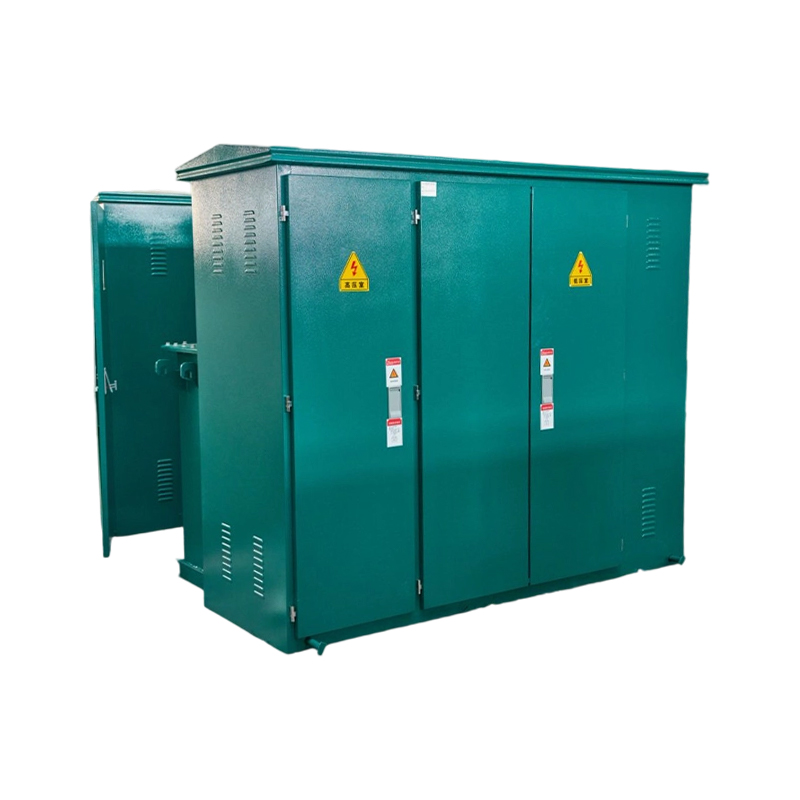

PV grid-connected switchgear is a self-contained assembly of electrical distribution equipment. On one side, it receives power from the solar inverters. On the other side, it feeds power into the utility grid or a local load network. The switchgear is built to a specific single-line diagram. Every component is integrated. Every function is verified.

The switchgear provides a single point of control. The operator can disconnect the solar array. They can isolate a faulty circuit. They can measure power quality. The installation is managed. No scattered components. No unprotected conductors.

It embeds the required protection functions

When solar power flows into the grid, abnormal conditions can occur. Overcurrent. Overvoltage. Islanding. PV grid-connected switchgear includes the relays and breakers that respond to these events. The protection is coordinated. The trip settings are pre-configured.

What Goes into PV Grid-connected Switchgear

The main circuit breaker

This is the primary switching device. It carries the full rated current of the solar installation. It must interrupt fault currents safely. PV grid-connected switchgear uses either air circuit breakers or moulded case circuit breakers. The choice depends on the voltage and current rating.

The disconnect switch

A visible isolation point is essential for safety. The disconnect switch provides an air gap. Maintenance crews can lock it out. PV grid-connected switchgear makes isolation simple and visible.

The protective relays

These devices monitor voltage, frequency, and current. If the grid parameters deviate from set limits, the relays signal the breaker to trip. This protects both the solar installation and the utility network.

The metering equipment

Revenue-grade meters or instrument transformers measure the power output. They track energy delivered to the grid. PV grid-connected switchgear integrates these into the lineup.

Here is what a typical PV grid-connected switchgear lineup includes:

• Main circuit breaker with trip unit
• Manually operated disconnect switch
• Multifunction protection relay
• Current and voltage transformers
• Busbar system to distribute power

Where PV Grid-connected Switchgear Gets Used

Utility-scale solar farms

Large solar fields generate power at medium voltage. PV grid-connected switchgear steps this up and feeds it into overhead lines or underground cables. The switchgear is the single point of interface with the utility.

Commercial rooftop systems

A commercial building generates solar power on its roof. PV grid-connected switchgear connects this generation to the building’s main electrical room. The switchgear manages the flow between the solar system, the loads, and the grid.

Energy storage integration

Battery storage systems often share a grid connection with solar arrays. PV grid-connected switchgear can combine the solar and storage feeds into one line-up. The switchgear manages the combined output.

What to Look for in PV Grid-connected Switchgear

The voltage and current rating

The switchgear must match the inverter output voltage and the grid connection voltage. The continuous current rating must handle peak solar output without overheating. PV grid-connected switchgear is sized for the specific application, from low-voltage commercial units to medium-voltage utility line-ups.

The fault interruption rating

The grid can deliver significant fault current. The circuit breaker must interrupt this current without damage. The switchgear’s short-circuit rating is a key specification.

The protection functions

Grid codes specify the protection required for solar connections. Under/over voltage. Under/over frequency. Anti-islanding. PV grid-connected switchgear must have relays programmed for these specific functions.

The enclosure and environmental rating

Solar sites are often exposed to heat, dust, and moisture. Outdoor installations need weatherproof enclosures. Indoor installations in electrical rooms need adequate ventilation. The enclosure rating determines where the switchgear can be installed.

Here is what makes effective PV grid-connected switchgear:

• Rated for the full load current and voltage
• Adequate short-circuit interruption capacity
• Grid-code-compliant protection settings
• Enclosure built for the installation environment

Why Proper Specification Matters

Underspecified switchgear creates a bottleneck

A circuit breaker that runs too hot. A protection relay that trips unnecessarily. A disconnect switch that is difficult to operate. The solar installation does not deliver its full value. PV grid-connected switchgear selected to match the exact site conditions avoids these losses.

Well-chosen switchgear simplifies commissioning

The switchgear arrives as a complete lineup. The connections are clearly identified. The protection settings are applied. The commissioning team verifies the functions and the system is ready. PV grid-connected switchgear designed for the project streamlines the handover.

A robust lineup ensures long-term reliability

Busbars do not corrode. Breakers operate reliably for thousands of cycles. Relay settings remain stable. PV grid-connected switchgear built with quality components serves through the operational life of the solar project.

PV grid-connected switchgear is one element in a solar installation. But it performs a central function. It protects the connection. It controls the power flow. It provides the isolation point. It delivers the metering data. Choose switchgear specified with the right ratings, the right protection, and the right enclosure. Your solar project will connect reliably. Your operations will run smoothly. That is the purpose of PV grid-connected switchgear. To make the grid connection safe, visible, and dependable.
